Amplivox 270+ Advanced Two-channel Diagnostic Audiometer (270+)

Brand:Amplivox
Product Code: 270+

£2,857.50

exc VAT

Total Cost: £2,857.50 exc VAT

Qty:

Description
About Amplivox 270+ Advanced Two-channel Diagnostic Audiometer (270+)

A powerful two-channel diagnostic audiometer with enhanced technology for a more accurate and efficient testing experience. All measurements required for hearing testing are included, as well as enhanced tests, making it the perfect choice for audiologists, ENTs and hearing aid suppliers within audiology.

Clinical measurement options
With recorded and live speech testing, the SRT and SDT scored can easily be defined at the most comfortable threshold level (MCL) for faster hearing aid fitting. The Model 270+ also includes key clinical tests required for the diagnosis of hearing issues such as cochlear and retrocochlear hearing loss (e.g. SISI, Tone Decay, ABLB). Additional counselling tools such as Hearing Level Simulator (HLS) and Master Hearing Aid (MHA) enable the operator to provide class-leading patient care.

Key features
- Two-channel audiometer
- Tone audiometry (AC, BC, pure tone, warble tone, pulsed tone)
- Narrowband and speech weighted masking
- Automatic AC and BC testing including automatic masking
- Speech audiometry (recorded and live)
- Masking assistant
- Free field functionality
- Special tests: ABLB, Stenger, SISI, Tone decay, HLS, MHA
- Amplisuite software and Noah modules included
Supportive
This portable audiometer features all the requirements expected within both screening and diagnostic audiometry. Both manual and automatic (Hughson Westlake and Békésy) testing are available for air and bone conduction, along with helpful tools to assist so that you can determine hearing loss issues quickly and efficiently.

The Model 270+ audiometer has been designed to be ready to test with everything you require in the all-in-one application. Learn the basic operations of the Model 270+ in less than five minutes.

Ergonomic design

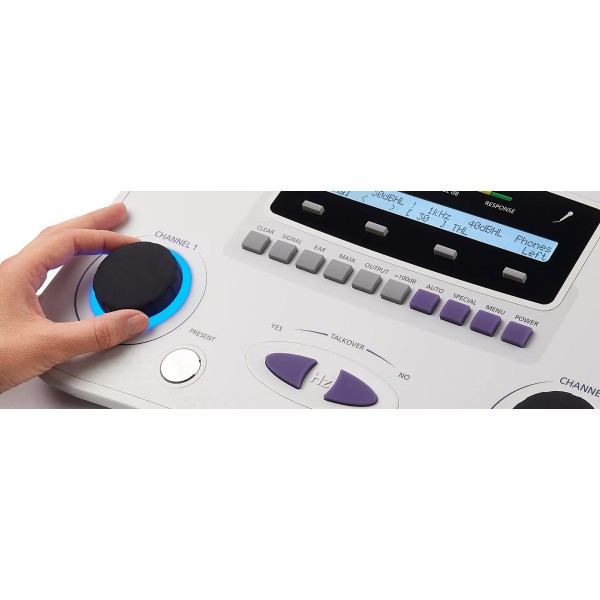

With a carefully considered layout, including premium-quality rotary controls, silent touch buttons, and illuminated light ring indicators representing the selected ear, the Model 270+ allows a constant overview of the test position whilst ensuring optimal hand placement.

With a logical six key (left-to-right) process to define test routines, this intuitive instrument guides operators through time saving test protocols to test accurately, making it ideal for those new to testing, as well as seasoned professionals.

Data management
With the inclusion of an internal memory function, test results can be printed immediately or saved for future processing using the supplied Amplisuite software. Amplisuite allows for easy results download for processing and management with useful counselling tools such as spectum/banana.

The audiometer also offers single-click integration to third-party Electronic Medical Record (EMR) systems such as Noah and OtoAccess® enabling the seamless transfer of results and data, for exceptional workflow efficiency.

Standard equipment
- Standard audiometric headset
- Bone conduction headset
- Patient response switch
- Audiogram cards (50)
- Mains power adaptor
- Carry case
- USB cable (PC connection)
- Manual & software (available via website download)
Optional equipment
- Monitor/masking earpiece and lead
- Combined microphone and monitor headset
- Talkback microphone
- Loudspeaker kit
- Audiocups (noise-reducing headset enclosures)
- Insert earphones
- Portable Thermal printer and cable
- Power Bank USB cable
Technical Specifications

Air conduction audiometry
- Air conduction range (kHz): 0.125, 0.25, 0.5, 0.75, 1, 1.5, 2, 3, 4, 6, 8
- Bone conduction range (kHz): 0.25, 0.5, 0.75, 1, 1.5, 2, 3, 4, 6, 8
- Frequency accuracy: <1%
- Distortion: <2%
- Test method: Manual or automatic mode (AC and BC)
- Tone present: Continuous, interrupted, pulsed, warble
Output level range
- Air conduction range: -10dBHL to 120dBHL ±3dB
- Bone conduction range: -10dBHL to 70dBHL ±3dB
- Output level step size: 1, 2, 5dB
Masking
- Masking: Narrowband and speech weighted noise
- Output: Headphones, insert earphones or insert masker
- Insert masking output: 90dBHL max (250-4kHz)
Freefield
- Output level range (FF): Up to 90dB
- No. of loudspeaker: 2
Special tests
- Overthreshold tests: Stenger test, ABLB (Fowler), SISI, Tone decay (Cahart)
- MHA, HLS
Communication
- Talk over: Integrated or external monitor headset
- Talk back: External microphone
Data Management
- Internal database: 10 audiograms
- Optional printer: MPT-II thermal printer
- Data transfer: Via USB cable to Amplisuite, NOAH, OtoAccess® and other EMR systems
- Languages: English, German, Polish
Speech

Speech input: PC, tape, CD or MP3 input or live speech

Safety and standards
- Type: Audiometer Type 3BE/Type 2
- Safety: IEC 60601-1 (plus UL, CSA & EN deviations)
- EMC: IEC 60601-1-2
- Performance: IEC 60645-1/ANSI S3.6
- CE Mark: Complies to EU Medical Device Regulation (MDR 2017/745)
Physical data
- Display: 2 lines of 24 characters
- Power: 100-240Vac 50-60Hz
- Dimensions (L x W x H): 259 x 374 x 90mm
- Weight: 1400g / 3.08lbs
