Vitalograph Alpha Spirometer (69002)

Brand:Vitalograph
Product Code: 69002

£1,470.00

exc VAT

Total Cost: £1,470.00 exc VAT

Qty:

Description

About Vitalograph Alpha Spirometer (69002)

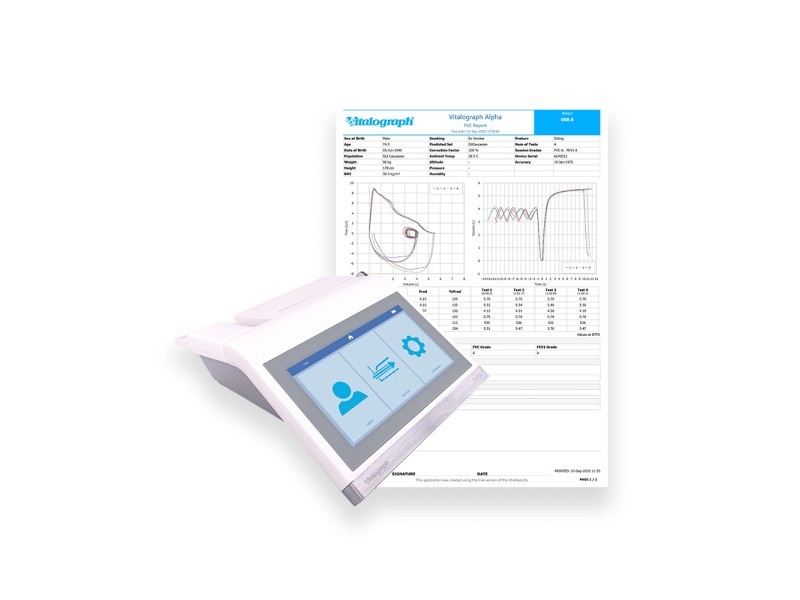

Vitalograph Alpha Spirometer (69002)

Highly portable lightweight all-in-one desktop spirometer and printer. Easy to use and no PC required.

Designed for testing on the go, remotely or in a clinic, the Alpha is the ultimate desktop spirometry solution.

The Alpha encompasses compliance with the ATS/ERS 2019 Technical Standards, multiple testing options, quick loading integrated thermal printer and direct links to Vitalograph Device Studio to generate PDF reports. Vitalograph Connect provides versatile connectivity to your electronic medical records via HL-7 and GDT, taking spirometry testing to the next level. Features a 7” high-resolution touch-screen and a redesigned intuitive user-friendly interface.

The Alpha Spirometer comes with:

Vitalograph Device Studio
Vitalograph Connect
USB cable
Ethernet cable
Medically approved power supply with country-specific plug
Carry case

Capabilities

Meets 2019 ATS/ERS Technical Standards.
Supports full feature Spirometry Testing and Bronchodilator Responsiveness Testing with over 50 available parameters.
Utilising proven, highly accurate, robust, and stable flow measuring technology.
Fast integral thermal printer – No PC required.
Lowest running costs & environmentally friendly: no need for costly disposable sensors, turbines, spirettes or flow tubes.
Save time & money on cleaning using Vitalograph BVFs with validated cross-contamination efficiency >99.999%, protecting the device, patient, and operator.
Instant quality feedback using the latest test/session acceptability, usability and repeatability criteria.
Automatic interpretation based on ATS/ERS & GOLD standards.
Ensure accurate results with quick and easy calibration verification routines recommended by 2019 ATS/ERS Technical Standards.
Fast evaluation of results using latest GLI spirometry predicted equations with LLN, %Pred and Z-scores. Other predicted equations are selectable.
Direct connectivity with Vitalograph Device Studio to generate PDF reports and receive the latest firmware updates.
Share test data easily with compatible Electronic Health Records (EHR) and Electronic Medical Records (EMR) systems through HL7, GDT.

Specification

Product	Vitalograph ALPHA, model 6000
Flow Detection Principal	Fleisch flow technology
Essential Performance Test Limits	Flow Accuracy ±10% or ±20 L/min, whichever is greater
Volume detection	Flow integration sampling @ 100Hz
Maximum displayed volume	10 L
Volume Accuracy	Better than ±2.5%
Voltage/Frequency	Power Supply: Input 100-240V, 50/60HZ, Output 12V, 1.5A, Battery: 7.2V, 2.2Ahr
Performance standards met or exceeded by Vitalograph ALPHA	ATS/ERS 2019 Technical Standards, ISO 23747:2015 & ISO 26782:2009
QA/GMP standards	EN ISO 13485, FDA 21CFR820, SOR/98-282 & JPAL, MDSAP
Dimensions	204 mm (length) x 253 mm (width)
Weight	1.5 kg net
Power Supply	Better than ±3%
Battery Type	4 x 1.5 AAA alkaline non-rechargeable
Power Supply	12V, 1.5A DC power supply 7.2V, 2.2AHr NiMH battery
